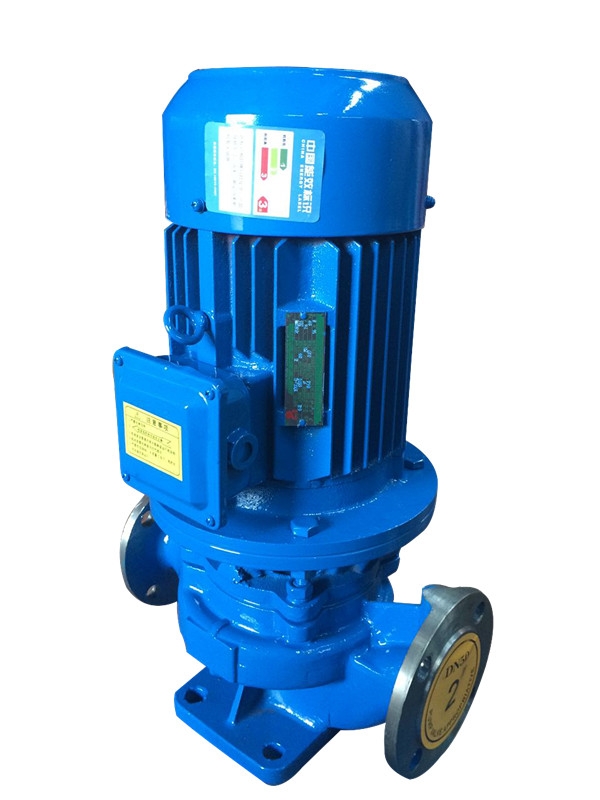

產品概述:
IHG型系列單級單吸不銹鋼管道泵,是本單位采用IS型離心泵之性能參數,在一般立式泵的基礎上進行巧妙組合設計而成,用戶可根據不同的介質的溫度、腐蝕性,選擇不同牌號的不銹鋼材質。符合最新國家機械部JB/T53058-93的標準要求。產品按國際IS02858標準設計制造。

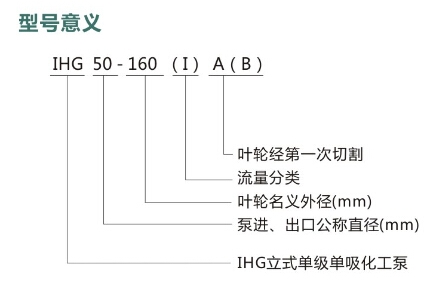

IHG立式管道泵型號意義:
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | 重量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | Kg | |
15-80 | 15 | 1.1 | 0.3 | 8.5 | 26 | 2800 | 0.18 | 2.3 | 17 |
20-110 | 20 | 1.8 | 0.5 | 16 | 25 | 2800 | 0.37 | 2.3 | 25 |
20-160 | 20 | 1.8 | 0.5 | 33 | 19 | 2900 | 0.75 | 2.3 | 29 |
25-110 | 25 | 2.8 | 0.78 | 16 | 34 | 2900 | 0.55 | 2.3 | 26 |
25-125 | 25 | 2.8 | 0.78 | 20.6 | 28 | 2900 | 0.75 | 2.3 | 28 |
25-125A | 25 | 2.5 | 0.69 | 17 | 35 | 2900 | 0.55 | 2.3 | 27 |
25-160 | 25 | 2.8 | 0.78 | 33 | 24 | 2900 | 1.5 | 2.3 | 39 |
25-160A | 25 | 2.6 | 0.12 | 29 | 31 | 2900 | 1.1 | 2.3 | 34 |
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | 重量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | Kg | |
32-100(I) | 32 | 4.4 | 1.22 | 13.2 | 48 | 2900 | 0.75 | 2.0 | 32 |
32-125 | 32 | 3.5 | 0.97 | 22 | 40 | 2900 | 0.75 | 2.3 | 28 |
32-125A | 32 | 3.1 | 0.86 | 17.6 | 43 | 2900 | 0.55 | 2.3 | 28 |
32-160(I) | 32 | 4.4 | 1.22 | 33.2 | 34 | 2900 | 2.2 | 2.0 | 47 |
32-200(I) | 32 | 4.4 | 1.22 | 50.5 | 26 | 2900 | 4 | 2.0 | 43 |
32-200A | 32 | 2.8 | 0.78 | 44.6 | 34 | 2900 | 2.2 | 2.0 | 74 |
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | 重量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | Kg | |
40-100 | 40 | 4.4 | 1.22 | 13.2 | 48 | 2900 | 0.55 | 2.3 | 32 |
40-100A | 40 | 3.9 | 1.08 | 10.6 | 52 | 2900 | 0.37 | 2.3 | 32 |
40-125 | 40 | 4.4 | 1.22 | 21 | 41 | 2900 | 1.1 | 2.3 | 34 |
40-125A | 40 | 3.9 | 1.08 | 17.6 | 40 | 2900 | 0.75 | 2.3 | 33 |
40-160 | 40 | 4.4 | 1.22 | 33 | 35 | 2900 | 2.2 | 2.3 | 47 |
40-160A | 40 | 4.1 | 1.14 | 29 | 34 | 2900 | 1.5 | 2.3 | 43 |
40-160B | 40 | 3.8 | 1.06 | 25.5 | 34 | 2900 | 1.1 | 2.3 | 38 |
40-200 | 40 | 4.4 | 1.22 | 51 | 26 | 2900 | 4 | 2.3 | 74 |
40-200A | 40 | 4.1 | 1.14 | 45 | 26 | 2900 | 3 | 2.3 | 62 |
40-200B | 40 | 3.7 | 1.03 | 38 | 29 | 2900 | 2.2 | 2.3 | 52 |
40-250 | 40 | 4.4 | 1.22 | 82 | 24 | 2900 | 7.5 | 2.3 | 105 |
40-250A | 40 | 4.1 | 1.14 | 72 | 24 | 2900 | 5.5 | 2.3 | 98 |
40-250B | 40 | 3.8 | 1.06 | 61.5 | 23 | 2900 | 4 | 2.3 | 77 |
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | 重量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | Kg | |
40-100(I) | 40 | 8.8 | 2.44 | 13.2 | 55 | 2900 | 1.1 | 2.3 | 34 |
40-100(I)A | 40 | 8 | 2.22 | 10.6 | 60 | 2900 | 0.75 | 2.3 | 32 |
40-125(I) | 40 | 8.8 | 2.44 | 21.2 | 49 | 2900 | 1.5 | 2.3 | 38 |
40-125(I)A | 40 | 8 | 2.22 | 17 | 57 | 2900 | 1.1 | 2.3 | 33 |
40-160(I) | 40 | 8.8 | 2.44 | 33 | 45 | 2900 | 3 | 2.3 | 56 |
40-160(I)A | 40 | 8.2 | 2.28 | 29 | 44 | 2900 | 2.2 | 2.3 | 47 |
40-160(I)B | 40 | 7.3 | 2.38 | 23 | 50 | 2900 | 1.5 | 2.3 | 43 |
40-200(I) | 40 | 8.8 | 2.44 | 51.2 | 38 | 2900 | 5.5 | 2.3 | 85 |
40-200(I)A | 40 | 8.3 | 2.31 | 45.0 | 37 | 2900 | 4 | 2.3 | 75 |
40-200(I)B | 40 | 7.5 | 2.08 | 37 | 44 | 2900 | 3 | 2.3 | 63 |
40-250(I) | 40 | 8.8 | 2.44 | 81.2 | 31 | 2900 | 11 | 2.3 | 145 |
40-250(I)A | 40 | 8.2 | 2.28 | 71.0 | 38 | 2900 | 7.5 | 2.3 | 95 |
40-250(I)B | 40 | 7.6 | 2.11 | 61.4 | 37 | 2900 | 7.5 | 2.3 | 94 |
40-250(I)C | 40 | 7.1 | 1.97 | 53.2 | 36 | 2900 | 5.5 | 2.3 | 88 |
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | 重量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | Kg | |
50-100 | 50 | 8.8 | 2.44 | 13.6 | 55 | 2900 | 1.1 | 2.3 | 36 |
50-100A | 50 | 8 | 2.22 | 11 | 60 | 2900 | 0.75 | 2.3 | 35 |
50-125 | 50 | 8.8 | 2.44 | 21.5 | 49 | 2900 | 1.5 | 2.3 | 43 |
50-125A | 50 | 8 | 2.22 | 17 | 57 | 2900 | 1.1 | 2.3 | 38 |
50-160 | 50 | 8.8 | 2.44 | 33 | 45 | 2900 | 3 | 2.3 | 59 |
50-160A | 50 | 8.2 | 2.28 | 29 | 44 | 2900 | 2.2 | 2.3 | 51 |
50-160B | 50 | 7.3 | 2.38 | 23 | 50 | 2900 | 1.5 | 2.3 | 47 |
50-200 | 50 | 8.8 | 2.44 | 52 | 38 | 2900 | 5.5 | 2.3 | 101 |
50-200A | 50 | 8.3 | 2.31 | 45.8 | 37 | 2900 | 4 | 2.3 | 80 |
50-200B | 50 | 7.5 | 2.08 | 37 | 44 | 2900 | 3 | 2.3 | 68 |
50-250 | 50 | 8.8 | 2.44 | 82 | 29 | 2900 | 11 | 2.3 | 160 |
50-250A | 50 | 8.2 | 2.28 | 71.5 | 38 | 2900 | 7.5 | 2.3 | 115 |
50-250B | 50 | 7.6 | 2.11 | 61.4 | 37 | 2900 | 7.5 | 2.3 | 114 |
50-250C | 50 | 7.1 | 1.97 | 53.2 | 36 | 2900 | 5.5 | 2.3 | 108 |
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | 重量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | Kg | |
50-100(I) | 50 | 17.5 | 4.86 | 13.7 | 67 | 2900 | 1.5 | 2.5 | 41 |
50-100(I)A | 50 | 15.6 | 4.3 | 11 | 65 | 2900 | 1.1 | 2.5 | 36 |
50-125(I) | 50 | 17.5 | 4.86 | 21.5 | 60 | 2900 | 3 | 2.5 | 56 |
50-125(I)A | 50 | 15.6 | 4.33 | 17 | 58 | 2900 | 2.2 | 2.5 | 48 |
50-160(I) | 50 | 17.5 | 4.68 | 34.4 | 54 | 2900 | 4 | 2.5 | 72 |
50-160(I)A | 50 | 16.4 | 4.56 | 30 | 54 | 2900 | 4 | 2.5 | 71 |
50-160(I)B | 50 | 15.0 | 4.17 | 26 | 58 | 2900 | 3 | 2.5 | 59 |
50-200(I) | 50 | 17.5 | 4.86 | 52.7 | 49 | 2900 | 7.5 | 2.5 | 108 |
50-200(I)A | 50 | 16.4 | 4.56 | 46.4 | 48 | 2900 | 7.5 | 2.5 | 107 |
50-200(I)B | 50 | 15.2 | 4.22 | 40 | 55 | 2900 | 5.5 | 2.5 | 100 |
50-250(I) | 50 | 17.5 | 4.86 | 82 | 39 | 2900 | 15 | 2.5 | 175 |
50-250(I)A | 50 | 16.4 | 4.56 | 71.5 | 39 | 2900 | 11 | 2.5 | 165 |
50-250(I)B | 50 | 15 | 4.17 | 61 | 38 | 2900 | 11 | 2.5 | 165 |
50-315(I) | 50 | 17.5 | 4.86 | 128 | 30 | 2900 | 30 | 2.5 | 310 |
50-315(I)A | 50 | 16.6 | 4.61 | 115 | 30 | 2900 | 22 | 2.5 | 245 |
50-315(I)B | 50 | 15.7 | 4.36 | 103 | 39 | 2900 | 18.5 | 2.5 | 215 |
50-315(I)C | 50 | 14.4 | 4.0 | 86 | 38 | 2900 | 15 | 2.5 | 195 |
型號 | 口徑
| 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | 重量 | |
m3/h | L/S | m | % | r/min | KW | (NPSH)r | Kg | ||
65-100 | 65 | 17.5 | 4.86 | 13.7 | 67 | 2900 | 1.5 | 2.5 | 46 |
65-100A | 65 | 15.6 | 4.3 | 11 | 65 | 2900 | 1.1 | 2.5 | 41 |
65-125 | 65 | 17.5 | 4.86 | 21.5 | 60 | 2900 | 3 | 2.5 | 58 |
65-125A | 65 | 15.6 | 4.33 | 17 | 58 | 2900 | 2.2 | 2.5 | 49 |
65-160 | 65 | 17.5 | 4.86 | 34.4 | 54 | 2900 | 4 | 2.5 | 75 |
65-160A | 65 | 16.4 | 4.56 | 30 | 54 | 2900 | 4 | 2.5 | 75 |
65-160B | 65 | 15.0 | 4.17 | 26 | 58 | 2900 | 3 | 2.5 | 63 |
65-200 | 65 | 17.5 | 4.86 | 52.7 | 49 | 2900 | 7.5 | 2.5 | 107 |
65-200A | 65 | 16.4 | 4.56 | 46.4 | 48 | 2900 | 7.5 | 2.5 | 107 |
65-200B | 65 | 15.2 | 4.22 | 40 | 55 | 2900 | 5.5 | 2.5 | 100 |
65-250 | 65 | 17.5 | 4.86 | 82 | 39 | 2900 | 15 | 2.5 | 180 |
65-250A | 65 | 16.4 | 4.56 | 71.5 | 39 | 2900 | 11 | 2.5 | 170 |
65-250B | 65 | 15 | 4.17 | 61 | 38 | 2900 | 11 | 2.5 | 170 |
65-315 | 65 | 17.5 | 4.86 | 127 | 32 | 2900 | 30 | 2.5 | 320 |
65-315A | 65 | 16.6 | 4.61 | 115 | 32 | 2900 | 22 | 2.5 | 255 |
65-315B | 65 | 15.7 | 4.36 | 103 | 39 | 2900 | 18.5 | 2.5 | 225 |
65-315C | 65 | 14.4 | 4.0 | 86 | 38 | 2900 | 15 | 2.5 | 205 |
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | 重量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | Kg | |
65-100(I) | 65 | 35 | 9.72 | 13.8 | 67 | 2900 | 3 | 3.0 | 63 |
65-100(I)A | 65 | 31.3 | 8.7 | 11 | 66 | 2900 | 2.2 | 3.0 | 53 |
65-125(I) | 65 | 35 | 9.72 | 22 | 67 | 2900 | 5.5 | 3.0 | 99 |
65-125(I)A | 65 | 31.3 | 8.7 | 17.5 | 66 | 2900 | 4 | 3.0 | 78 |
65-160(I) | 65 | 35 | 9.72 | 35 | 63 | 2900 | 7.5 | 3.0 | 103 |
65-160(I)A | 65 | 32.7 | 9.1 | 30.6 | 62 | 2900 | 7.5 | 3.0 | 103 |
65-160(I)B | 65 | 30.3 | 8.4 | 26 | 69 | 2900 | 5.5 | 3.0 | 97 |
65-200(I) | 65 | 35 | 9.72 | 53.5 | 55 | 2900 | 15 | 3.0 | 176 |
65-200(I)A | 65 | 32.8 | 9.1 | 47 | 54 | 2900 | 11 | 3.0 | 166 |
65-200(I)B | 65 | 30.5 | 8.5 | 40.6 | 65 | 2900 | 7.5 | 3.0 | 114 |
65-250(I) | 65 | 35 | 9.72 | 83 | 52 | 2900 | 22 | 3.0 | 235 |
65-250(I)A | 65 | 32.5 | 9.0 | 73 | 52 | 2900 | 18.5 | 3.0 | 205 |
65-250(I)B | 65 | 30 | 8.3 | 62 | 58 | 2900 | 15 | 3.0 | 180 |
65-315(I) | 65 | 35 | 9.72 | 128 | 44 | 2900 | 37 | 3.0 | 350 |
65-315(I)A | 65 | 32.5 | 9.0 | 112.6 | 43 | 2900 | 30 | 3.0 | 335 |
65-315(I)B | 65 | 31 | 8.6 | 102.5 | 53 | 2900 | 30 | 3.0 | 335 |
65-315(I)C | 65 | 29 | 8.1 | 87 | 51 | 2900 | 22 | 3.0 | 270 |
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | 重量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | Kg | |
80-100 | 80 | 35 | 9.72 | 13.8 | 67 | 2900 | 3 | 3.0 | 63 |
80-100A | 80 | 31.3 | 8.7 | 11 | 66 | 2900 | 2.2 | 3.0 | 54 |
80-125 | 80 | 35 | 9.72 | 22 | 67 | 2900 | 5.5 | 3.0 | 99 |
80-125A | 80 | 31.3 | 8.7 | 17.5 | 66 | 2900 | 4 | 3.0 | 79 |
80-160 | 80 | 35 | 9.72 | 35 | 63 | 2900 | 7.5 | 3.0 | 105 |
80-160A | 80 | 32.7 | 9.1 | 30.6 | 62 | 2900 | 7.5 | 3.0 | 105 |
80-160B | 80 | 30.3 | 8.4 | 26 | 69 | 2900 | 5.5 | 3.0 | 98 |
80-200 | 80 | 35 | 9.72 | 53.5 | 55 | 2900 | 15 | 3.0 | 175 |
80-200A | 80 | 32.8 | 9.1 | 47 | 54 | 2900 | 11 | 3.0 | 165 |
80-200B | 80 | 30.5 | 8.5 | 40.6 | 65 | 2900 | 7.5 | 3.0 | 115 |
80-250 | 80 | 35 | 9.72 | 83 | 52 | 2900 | 22 | 3.0 | 240 |
80-250A | 80 | 32.5 | 9.0 | 73 | 52 | 2900 | 18.5 | 3.0 | 210 |
80-250B | 80 | 30 | 8.3 | 62 | 58 | 2900 | 15 | 3.0 | 185 |
80-315 | 80 | 35 | 9.72 | 128 | 43 | 2900 | 37 | 3.0 | 355 |
80-315A | 80 | 32.5 | 9.0 | 112.6 | 43 | 2900 | 30 | 3.0 | 340 |
80-315B | 80 | 31 | 8.6 | 102.5 | 53 | 2900 | 30 | 3.0 | 340 |
80-315C | 80 | 29 | 8.1 | 98 | 51 | 2900 | 22 | 3.0 | 275 |
80-350 | 80 | 35 | 9.72 | 146 | 55 | 2900 | 55 | 3.0 | 570 |
80-350A | 80 | 31 | 8.6 | 138.4 | 65 | 2900 | 45 | 3.0 | 470 |
80-350B | 80 | 29 | 8.1 | 131.4 | 63 | 2900 | 37 | 3.0 | 440 |
型號 | 口徑 | 流量 | 揚程 | 效率 | 轉速 | 電機功率 | 必需汽蝕余量 | 重量 | |
mm | m3/h | L/S | m | % | r/min | KW | (NPSH)r | Kg | |
80-100(I) | 80 | 70 | 19.4 | 13.6 | 66 | 2900 | 5.5 | 4.5 | 108 |
80-100(I)A | 80 | 62.6 | 17.4 | 11 | 64 | 2900 | 4 | 4.5 | 87 |
80-125(I) | 80 | 70 | 19.4 | 23.5 | 70 | 2900 | 11 | 4.5 | 163 |
